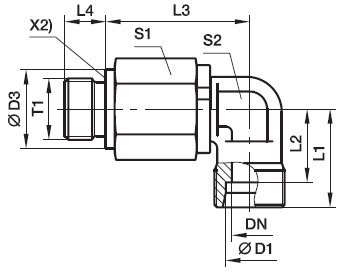

Наружная резьба BSPP – Уплотнитель ED (ISO 1179) / Конус EO 24°
| Код заказа | Серия | D1 | T1 | DN | D3 | L1 | L2 | L3 | L4 | S1 | S2 | Масса, гр |
| ADG104/06SROMD | S | 6 | G 1/4 A | 5 | 19 | 23 | 16 | 39,5 | 12 | 22 | 17 | 131 |
| ADG104/08SROMD | 8 | G 1/4 A | 5 | 19 | 24 | 17 | 39,5 | 12 | 22 | 17 | 135 | |
| ADG104/12SROMD | 12 | G 3/8 A | 10 | 22 | 29 | 21,5 | 51 | 12 | 30 | 22 | 284 | |
| ADG104/16SROMD | 16 | G 1/2 A | 10 | 27 | 33 | 24,5 | 49 | 14 | 30 | 22 | 284 | |
| ADG104/20SROMD | 20 | G 3/4 A | 16 | 32 | 37 | 26,5 | 67 | 16 | 41 | 36 | 752 | |
| ADG104/25SROMD | 25 | G 1 A | 16 | 40 | 42 | 30 | 65 | 18 | 41 | 36 | 789 | |
| ADG104/30SROMD | 30 | G 1 1/4 A | 26 | 50 | 49 | 35,5 | 82,5 | 20 | 60 | 50 | 1713 | |
| ADG104/38SROMD | 38 | G 1 1/2 A | 26 | 55 | 57 | 41 | 80,5 | 22 | 60 | 50 | 1915 |
